Product Description:

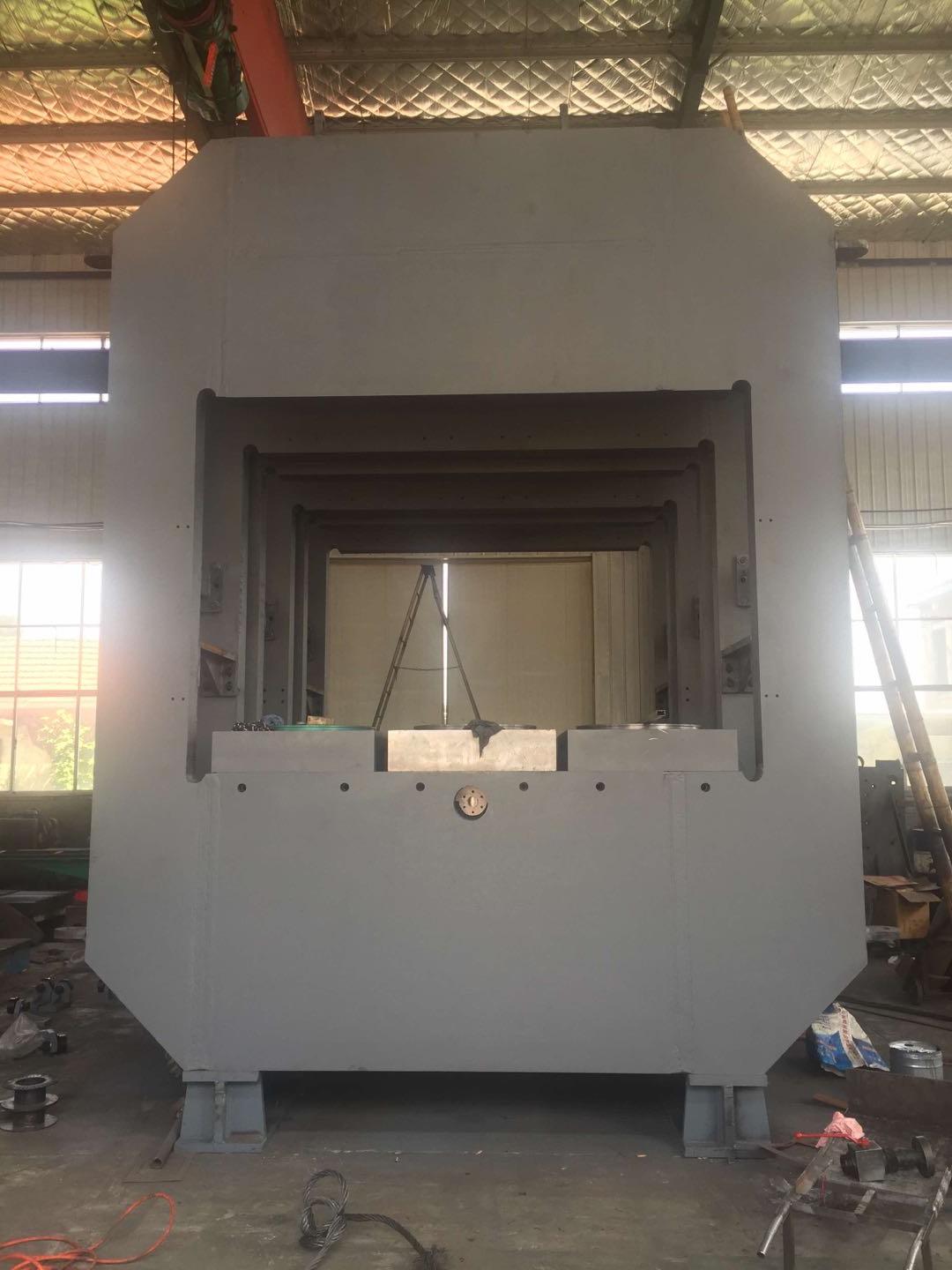

The Rubber Vulcanizing Press Machine is a specialized device used in the vulcanization of rubber materials. It has a voltage of 380V and a temperature range of 0-300℃, a pressure range of 0-25MPa, and electric heating mode. The machine is certified by CE and equipped with advanced control systems to ensure it performs effectively and safely. Our Rubber Vulcanizing Press Machine is designed for rubber vulcanization, and it has been tested and proven to be reliable and efficient in the vulcanization of rubber materials. It is suitable for various rubber products, such as rubber sheets, sheets, rubber blocks, and rubber plates. The machine is equipped with a safety system to ensure operator safety during operation. It is easy to operate and maintain, and it has a long service life. With the Rubber Vulcanizing Press Machine, you can achieve perfect vulcanization results with precise temperature and pressure control.
Features:
- Product Name: Rubber Vulcanizing Press Machine
- Type: Vulcanizing Press
- Temperature Range: 0-300℃
- Control System: PLC
- Heating Mode: Electric Heating
- Vulcanizing Time: 0-999s
- Special Feature: Automatic vulcanizing press, Rubber vulcanizing machine
| type | XLB-1400X5700X2 | XLB-1400X10000X1 | XLB-1600X10000X2 | XLB-1800X8000X2 | XLB-1800X12000X2 | XLB-2000X10000X1 |
| Plate size(mm) | 1400X5700 | 1400X10000 | 1600X10000 | 1800X8000 | 1800X120000 | 2000X10000 |
| Total pressure(MN) | 25.00 | 49.00 | 56.00 | 51.00 | 74.00 | 70.00 |
| Pressure unit of platen | 3.13 | 3.5 | 3.5 | 3.54 | 3.4 | 3.5 |
| Ram. Dia. | 360 | 450 | 450 | 600 | 500 | 600 |
| Ram number | 10 | 20 | 18 | 12 | 18 | 16 |
| Max. ram stroke(mm) | 400 | 300 | 400 | 600 | 400 | 300 |
| Clamping force(MN) | 0.72 | 0.90 | 1.20 | 1.20 | 1.20 | 1.20 |
| Tensioning force(MPA) | 0.60 | 0.80 | 1.10 | 1.00 | 1.10 | 1.00 |
| Steam pressure(MPA) | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 |
| Pressure of cooling water(MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Control system | PLC | PLC | PLC | PLC | PLC | PLC |
Technical Parameters:
| Parameter | Value |
| Name | Rubber Vulcanizing Press Machine |
| Type | Vulcanizing Press |
| Material | Steel |
| Control System | PLC |
| Cylinder Stroke | 200mm |
| Heating Mode | Electric Heating |
| Temperature Range | 0-300℃ |
| Vulcanizing Time | 0-999s |
| Voltage | 380V |
| Certificate | CE |
Applications:
Rubber Vulcanizing Press Machine is a professional machine for rubber mat vulcanizing. Brand Name: Beishun; Model Number: XLB-350×350×2; Place of Origin: Qingdao; Certification: CE, ISO; Minimum Order Quantity: 1pcs; Price: 5000USD-100000USD; Delivery Time: 45days; Payment Terms: T/T, L/C; Supply Ability: 30set/years; Voltage: 380V; Certificate: CE; Name: Rubber Vulcanizing Press Machine; Type: Vulcanizing Press; Temperature Range: 0-300℃.
The Rubber Vulcanizing Press Machine is commonly used in the production of rubber gaskets, rubber mats, rubber seals, rubber sheets and other rubber products. It can effectively vulcanize and press rubber materials. The rubber material can be heated evenly and the temperature can be adjusted flexibly. The vulcanizing press has a wide range of application in rubber industry, such as rubber mat vulcanizing, rubber gasket vulcanizing, rubber sheet vulcanizing and so on.
High-precision temperature control technology is adopted in the Rubber Vulcanizing Press Machine, which can accurately control the temperature of the press. The temperature can be adjusted between 0-300℃. The pressure and speed of the press are also adjustable, allowing the user to adjust the parameters according to different rubber materials and product requirements.
The Rubber Vulcanizing Press Machine has a wide range of applications. It is suitable for the production of rubber seals, rubber mats, rubber gaskets, rubber sheets and other rubber products. It can effectively vulcanize and press rubber materials, and can also be used for composite rubber and plastic products.
Customization:
We provide custom services for Rubber Vulcanizing Press Machine. Our brand name is Beishun, and the model number is XLB-350×350×2. It is produced in Qingdao, certified with CE and ISO, and the minimum order quantity is 1pcs. The price range varies from 5000USD to 100000USD, and the delivery time is 45days. We accept payment by T/T, L/C. Our supply ability is 30set/years, and the voltage is 380V. The cylinder stroke is 200mm. This machine has a temperature range between 0-300℃, and it is CE certified. It is a hydraulic vulcanizing press, and it is ideal for rubber vulcanizing.
Support and Services:
We provide technical support and services for Rubber Vulcanizing Press Machine, including:
- Safety advice on machine operation and maintenance
- Efficient and reliable repair services
- Timely troubleshooting and on-site diagnosis
- Expert advice on machine selection and installation
- Free technical training and guidance
