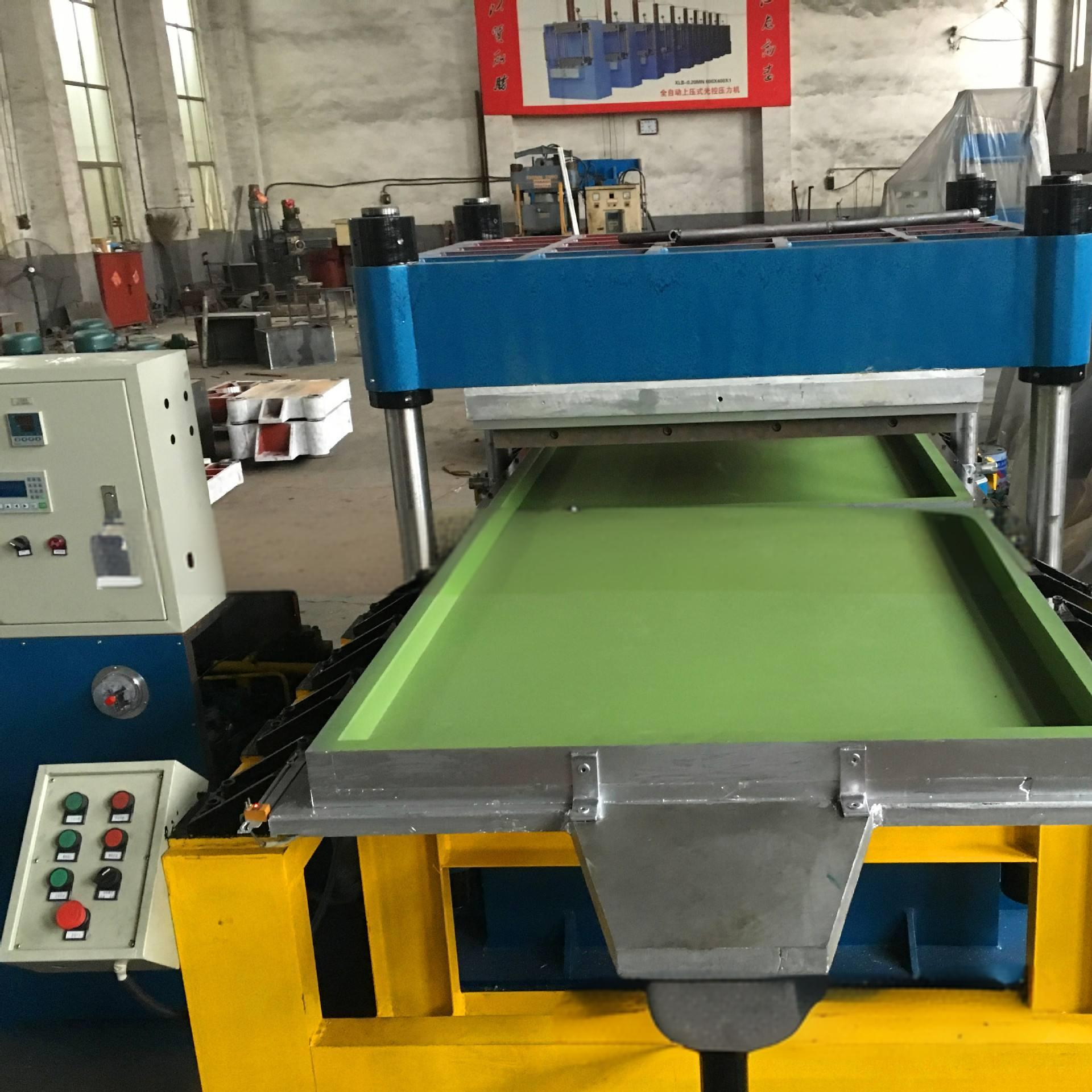

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing

  • 1
  • 2
  • 3

Brand Name : BeiShun

Model Number : XLB-120081200/1.6MN

Certification : CE/ISO

Place of Origin : Qingdao City China

MOQ : 1 set

Price : 9000-15000USD

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30 days

Packaging Details : Wooden box /Container

Power Source : Electric

Type : Vulcanizing Press

Clamping Pressure : 160T/custom made

Customized : Customized

Plc : Mitushibi, Siemens .

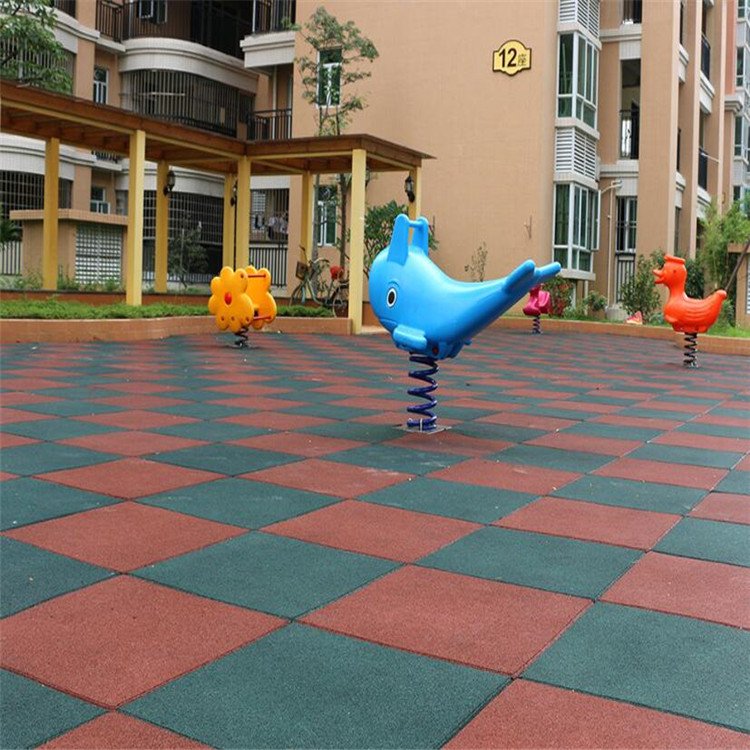

Usage : making rubber floor tiles

Model : XLB-1200*1200/MN

Cylinder Stroke : Customized

Daylight : 200mm

Size : Customized

Piston Material : Chilled Cast Iron

Structure Style : Horizontal

Temperature Range : 0-300℃

Contact Now

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing


For a hot plate size of 1200×1200 mm in a rubber floor tile vulcanizing press, the following considerations are important:

  1. Press Capacity: Ensure the press has sufficient tonnage to apply uniform pressure across the entire 1200×1200 mm area. The required tonnage depends on the material and thickness of the rubber tiles.

  2. Heating System: The hot plate should have an efficient heating system (electric, steam, or oil) to maintain consistent temperature across the entire surface. Temperature control is critical for proper vulcanization.

  3. Platen Flatness: The hot plate must be perfectly flat to ensure even pressure and heat distribution. Any warping can lead to uneven vulcanization.

  4. Insulation: Proper insulation around the hot plate is necessary to minimize heat loss and improve energy efficiency.

  5. Mold Size: The mold used for the rubber floor tiles should fit comfortably within the 1200×1200 mm hot plate area, allowing for proper clamping and pressure application.

  6. Automation: Depending on production needs, consider automated systems for loading, unloading, and controlling the vulcanization process.

  7. Safety Features: Include safety mechanisms such as pressure relief valves, temperature sensors, and emergency stop buttons.

If you need specific recommendations for equipment or further details, feel free to ask!



Technical parameter

Type XLB-DQ1200× 1200× 2 XLB-DQ1300× 2000× 1 XLB-Q1200× 2500× 1 XLB-Q1500× 2000× 1 XLB-Q2000× 3000× 1 XLB-Q1400× 5700× 1
Total Pressure(MN) 315t 560t 750t 1000t 1800t 2800t
Plate Size(mm) 1200× 1200 1300× 2000 1200× 2500 1500× 2500 2000× 3000 1400× 5700
Daylight (mm) 200 400 400 400 400 400
Layer NO. 2 1 1 1 1 1
Piston Stroke(mm) 400 400 400 400 400 400
Plate Unit Area Pressure 22 21.5 25 33.5 30 35
Main Motor Power(kw) 3 8 9.5 11 26 43.5
Overall Dimension(L× W× H) (mm) 1685× 1320× 2450 2000× 1860× 2500 2560× 1700× 2780 2810× 1550× 3325 2900× 3200× 2860 2400× 5800× 3600
Weight(kg) 9500 17000 20000 24000 66000 110000

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing

1200×1200 Work Table Rubber Vulcanizing Machine For Rubber Floor Tile Manufacturing
